AeroSense-Mini60-L

Name: AeroSense-Mini60-L
Brand: Zenocean
Availability: InStock

Cold-climate variant of the AeroSense-Mini60 wind sensor, qualified for sustained service in low-temperature and polar deployments.

AeroSense-Mini60-L is the low-temperature variant of the AeroSense-Mini60 series, optimised for long deployments in cold environments. It keeps the compact 0.6 kg AAS body with NMEA-0183 over RS485 by default, and adds cold-environment materials and lubrication for reliable wind data in alpine, polar, and high-latitude sites.

Request a Quote Download Datasheet Back to Product List

AeroSense-Mini60-L low-temperature propeller wind sensor

Cold-Climate Qualified

Engineered for sustained operation at low ambient temperatures.

Same Compact Body

Drop-in upgrade for AeroSense-Mini60 hardware in cold-climate sites.

±3° Direction Accuracy

1° resolution with ±3° calibrated accuracy.

Multi-Protocol

RS485 / NMEA / Modbus / CAN / SDI-12 / analog options.

Propeller Design

Aerodynamic propeller and tail wing for fast wind speed and direction response.

Marine Grade

UV- and oxidation-resistant AAS plastic body resists yellowing and fatigue.

Standard Protocols

RS485 with NMEA-0183 by default; analog, Modbus RTU, CAN, SDI-12 optional.

Wide Configurability

Mode signal, NMEA, ASCII (Vaisala compatible), CAN (ASCII) options available.

Long Service Life

Engineered for 50 million revolutions of continuous service.

Easy Mounting

Standard sleeve flange or pole mounting for stations, masts, and buoys.

Overview Specifications Parameters Resources Accessories Support

AeroSense-Mini60-L Overview

AeroSense-Mini60-L is the low-temperature variant of the AeroSense-Mini60 propeller wind sensor. It uses the same compact AAS plastic body and propeller-vane geometry as the standard AeroSense-Mini60, but adds cold-environment design upgrades so that the sensor remains reliable in polar, alpine, and northern-latitude installations.

Like the standard AeroSense-Mini60, it provides horizontal wind speed and direction with NMEA-0183 over RS485 by default and supports analog, Modbus RTU, CAN, SDI-12, and ASCII outputs to integrate with existing data acquisition systems.

AeroSense-Mini60-L Product Images

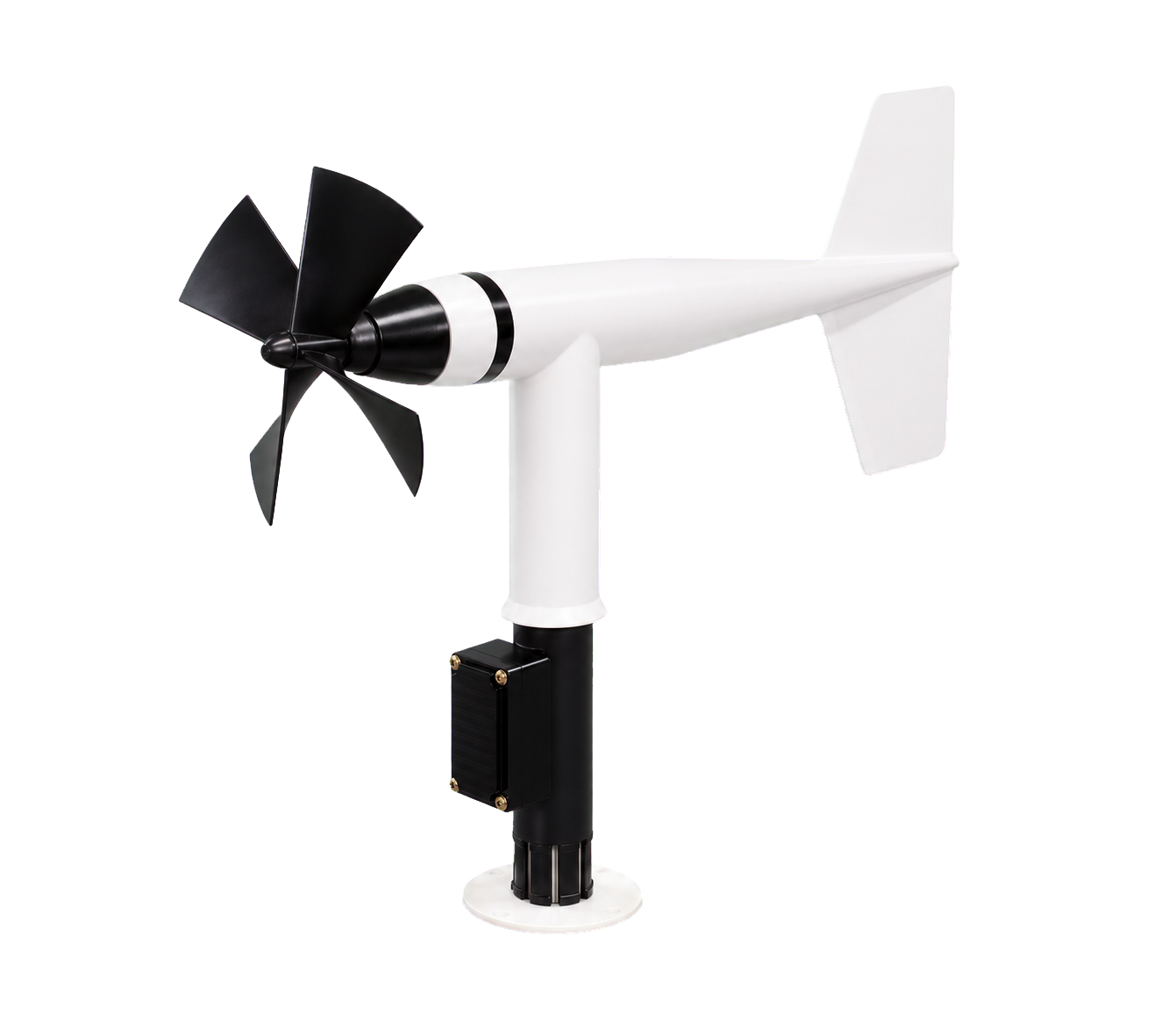

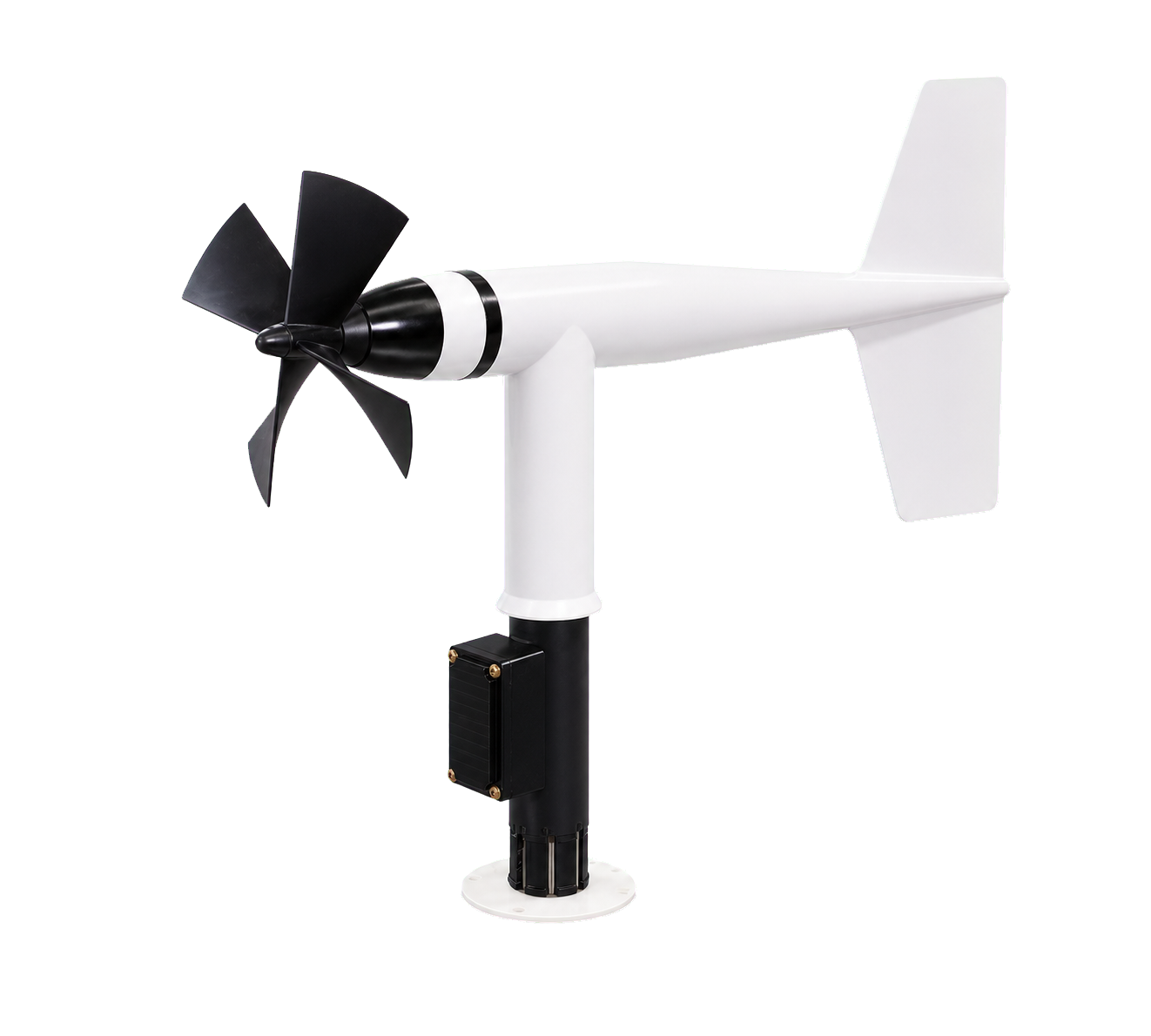

Front product view.

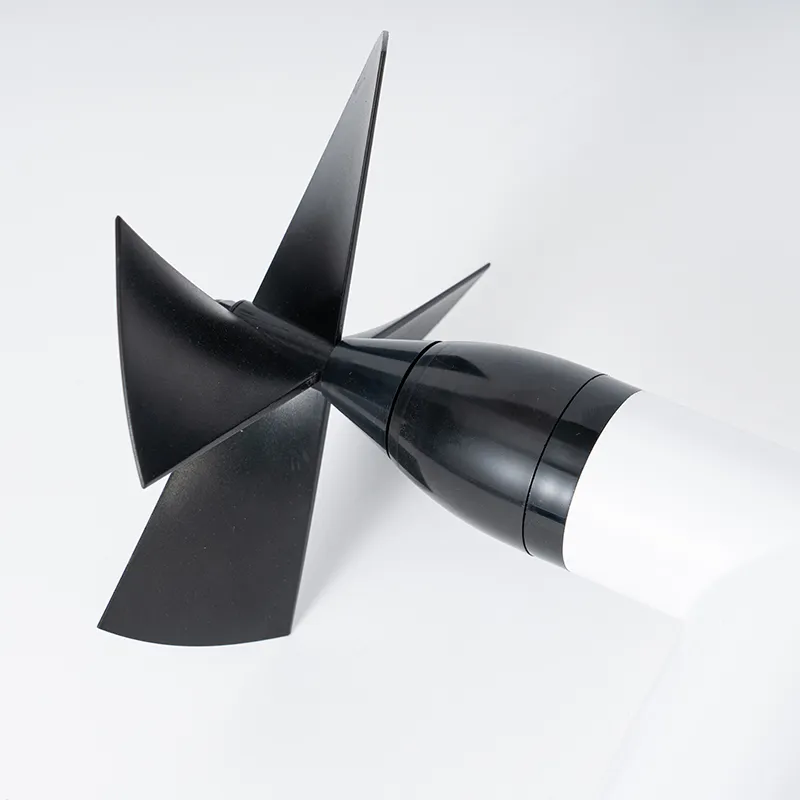

Curved-blade propeller from below.

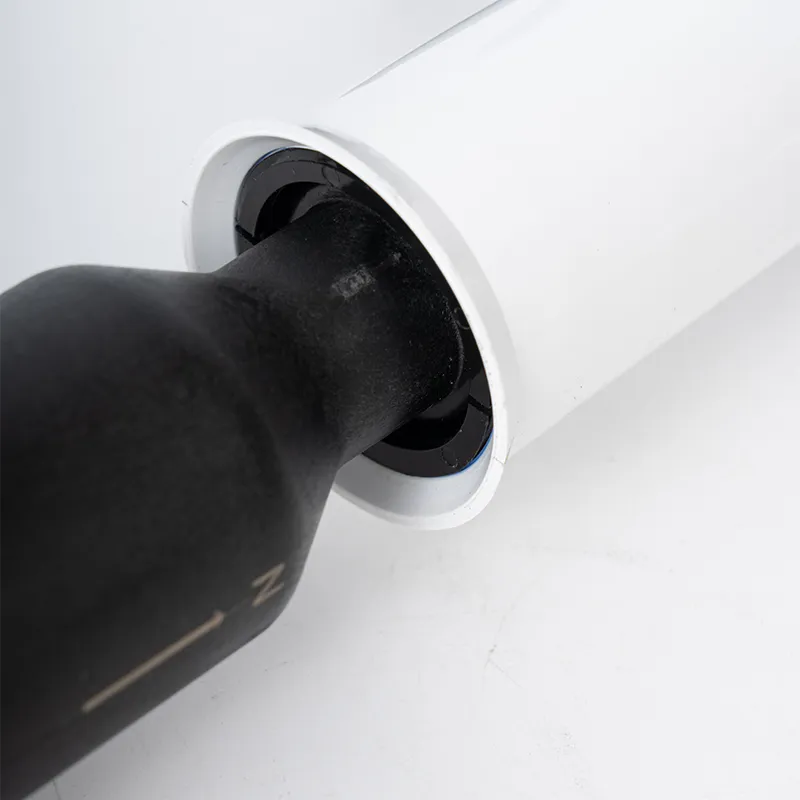

Propeller shaft and body joint detail.

AeroSense-Mini60-L Key Specifications

View Full Specifications

Parameter

Value

Wind Speed Range

0 to 60 m/s

Standard mechanical range

Wind Speed Resolution

0.1 m/s

Output resolution

Wind Speed Accuracy

±0.3 m/s or ±1% (greater value)

Calibrated accuracy

Wind Speed Threshold

≤ 0.5 m/s

Start-up wind speed

Wind Direction Range

0 to 360°

Full azimuth coverage

Wind Direction Resolution

1°

Output resolution

Wind Direction Accuracy

±3°

Calibrated accuracy

Wind Direction Threshold

≤ 0.5 m/s

Start-up wind speed

Wind Direction Relative Angle

< ±10°

Dead-band

Housing Material

AAS plastic with cold-environment treatment

UV- and oxidation-resistant

Operating Temperature

-40 to +55 °C

Cold-climate optimised

Dimensions / Weight

H 373 mm × L 327 mm, 0.6 kg

Bare sensor

Standard Output

RS485 with NMEA-0183 protocol

Default interface

Optional Outputs

Analog, NMEA, ASCII (Vaisala compat.), CAN (ASCII), RS232, SDI-12, Modbus RTU

Customizable

Power Supply

DC5V; with relay board 12 V ±10%

Low-power

Ingress Protection

IP66

Long-duration field use

Mounting

Standard sleeve flange (pole or mast)

Optional flange / pole adapters

Propeller OD / Tail Wing Radius

130 mm / 218 mm

Tail wing height 278 mm

Wind Speed Frequency

0.076 m/s per 1 Hz

Pulse rate

Service Life

5 million / 100 million revolutions

Standard / extended option

Certifications

CMA, CNAS reports

Low/high temperature, salt spray, vibration, low pressure, temperature variation, EMI, wet/dry

View Full Specifications

AeroSense-Mini60-L Supported Parameters

Measured Parameters

Horizontal Wind Speed Horizontal Wind Direction

Output Options

RS485 NMEA-0183 Analog 4-20 mA Modbus RTU CAN (ASCII) RS232 SDI-12

Power Options

DC5V direct 12 V relay board ±10%

Environmental

-40 to +55 °C cold-optimised IP66 AAS housing

AeroSense-Mini60-L Resources and Downloads

Product Datasheet

Specifications, configurations, and deployment ratings for project planning.

Request PDF

Integration Guide

Wiring, protocol notes, and mounting guidance for platform integrators.

Email Support

Calibration & Maintenance

Recommended verification, calibration, and servicing workflow.

Get Checklist

AeroSense-Mini60-L Accessories

Mounting Kit

Standard sleeve flange and pole-mount hardware for fast installation.

Cable & Junction Box

Weatherproof cabling and junction options for field wiring.

Protocol Conversion

Converters between RS485, NMEA, Modbus, CAN, SDI-12, and analog outputs.

AeroSense-Mini60-L Support and Deployment Guidance

Wiring and protocol assistance for RS485, NMEA-0183, Modbus, and analog outputs.

Integration support for buoys, coastal stations, vessels, and renewable-energy sites.

Calibration, field-verification, and long-term maintenance planning.

Custom configuration for harsh-environment, marine, and polar deployments.

AeroSense-Mini60-L Frequently Asked Questions

What is AeroSense-Mini60-L?

AeroSense-Mini60-L is cold-climate variant of the AeroSense-Mini60 wind sensor, qualified for sustained service in low-temperature and polar deployments. AeroSense-Mini60-L is the low-temperature variant of the AeroSense-Mini60 series, optimised for long deployments in cold environments. It keeps the compact 0.6 kg AAS body with NMEA-0183 over RS485 by default, and adds cold-environment materials and lubrication for reliable wind data in alpine, polar, and high-latitude sites.

What parameters does AeroSense-Mini60-L support?

AeroSense-Mini60-L supports Horizontal Wind Speed, Horizontal Wind Direction, RS485, NMEA-0183, Analog 4-20 mA, Modbus RTU, CAN (ASCII), RS232, and other configured parameters.

Where is AeroSense-Mini60-L typically used?

AeroSense-Mini60-L is typically used for Polar and high-latitude research stations, Alpine and cold-climate meteorological networks, Cold-region airports and transportation meteorology, Northern offshore platforms and arctic shipping routes.

What systems work with AeroSense-Mini60-L?

AeroSense-Mini60-L can be configured with OceanStations, CoreLink Telemetry and related Zenocean monitoring platforms or telemetry systems.

What support is available for AeroSense-Mini60-L?

Zenocean provides configuration, integration, deployment and maintenance guidance for AeroSense-Mini60-L projects.
