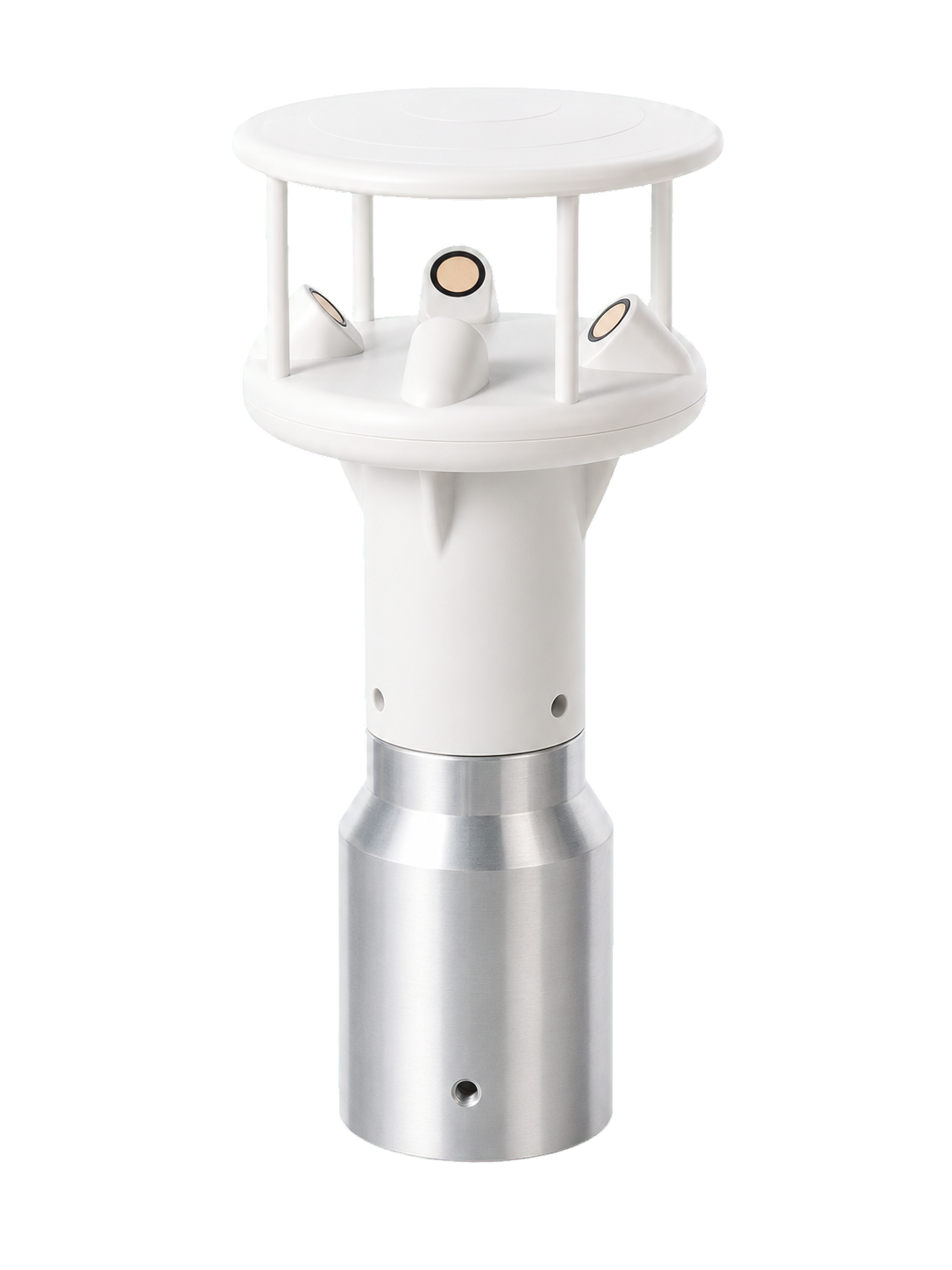

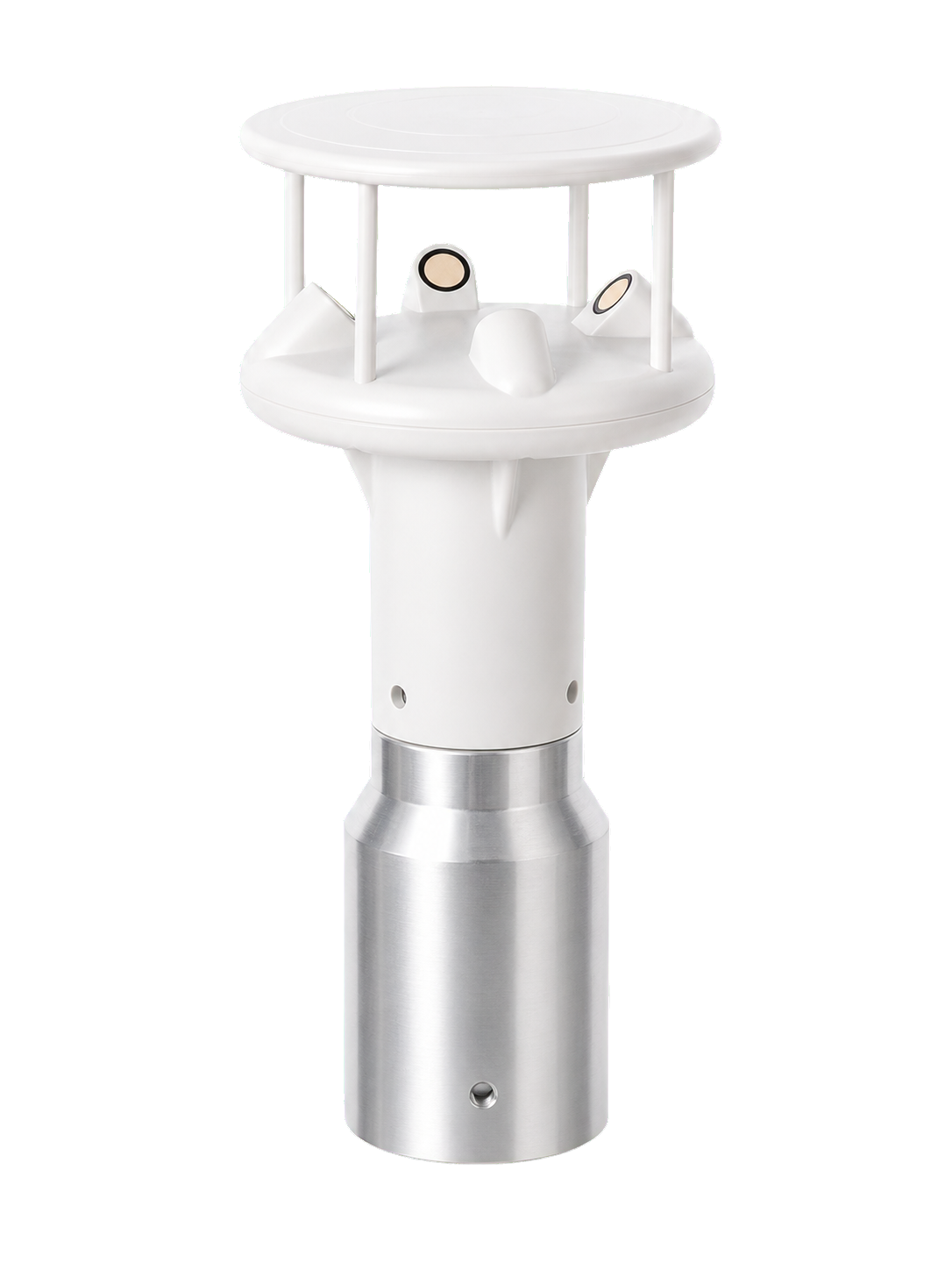

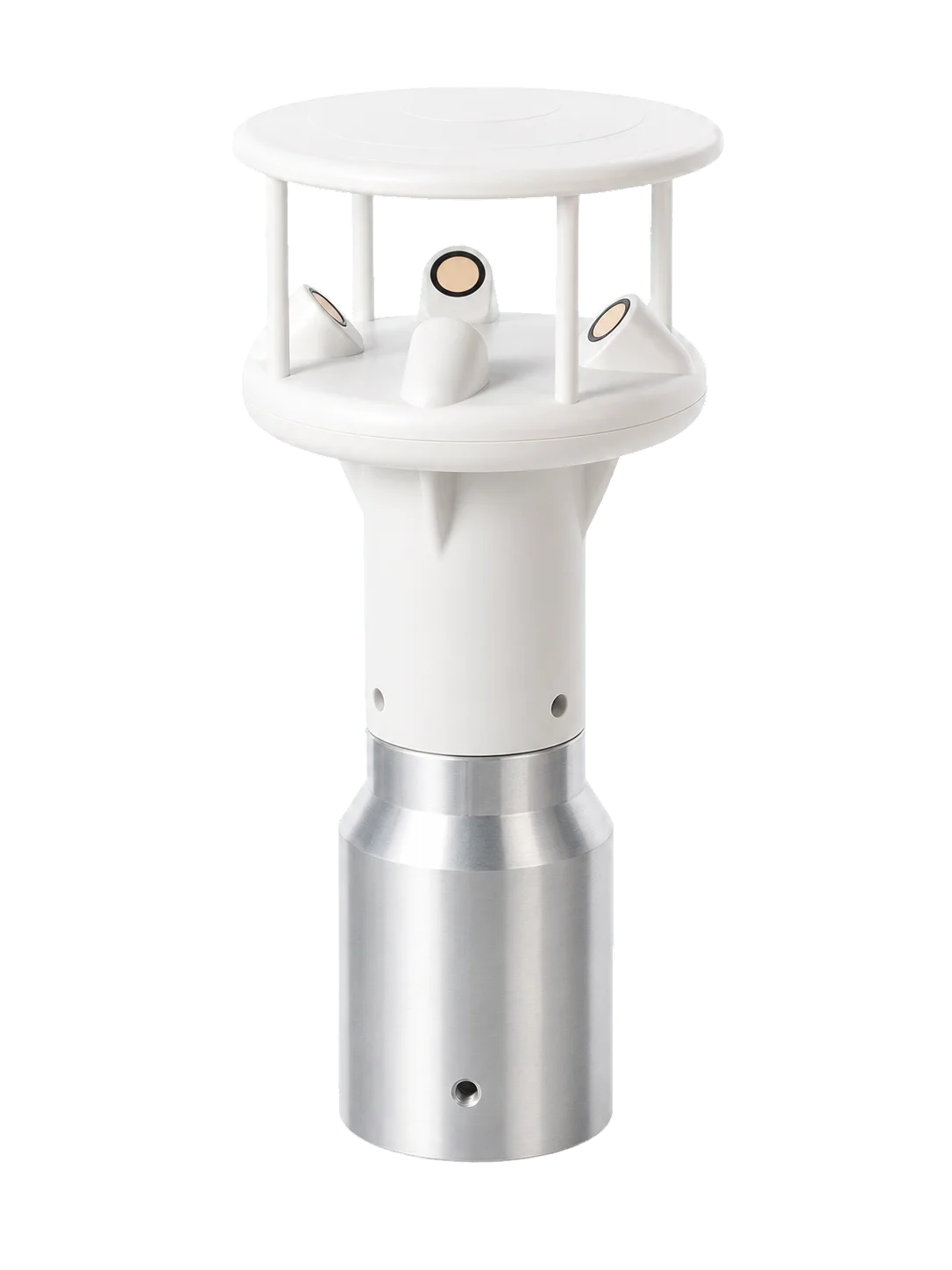

Ultrasonic wind speed and direction sensor with no moving parts, fast response, ±2.5° direction accuracy, and a long service life.
AeroSense-UWS measures wind speed and direction from variations in ultrasonic propagation time through the airflow. With no moving parts to wear out, the sensor offers fast response, high accuracy, and long service life — well-suited to meteorology, environmental monitoring, and wind-turbine control.
Ultrasonic measurement eliminates mechanical wear.
Wide wind speed range with ±0.5 m/s or ±3% accuracy.
High sample rate captures gust events and rapid transitions.
-40 to +60 °C standard, with -55 to +70 °C configurable.
Ultrasonic time-of-flight measurement removes mechanical wear.
High sample rate captures gusts and rapid wind transitions.
±0.5 m/s or ±3% of reading across the full 0-75 m/s range.
-40 to +60 °C standard, with -55 to +70 °C configurable.
RS485 with NMEA-0183; ASCII, Modbus RTU, SDI-12 selectable.
168 mm tall, 140 mm OD for mast, pole, or buoy integration.
AeroSense-UWS derives wind speed and direction from the variation of ultrasonic propagation time across the airflow. The non-contact, inertia-free measurement gives the sensor fast response, high accuracy, no mechanical wear, and a long working life — useful where moving-parts anemometers would degrade over time.
Typical applications include meteorological observation, environmental monitoring, and wind-turbine control. The sensor outputs NMEA-0183 over RS485 by default and supports a number of optional digital and analog protocols for direct integration with telemetry and SCADA systems.
Specifications, configurations, and deployment ratings for project planning.
Request PDFWiring, protocol notes, and mounting guidance for platform integrators.
Email SupportRecommended verification, calibration, and servicing workflow.

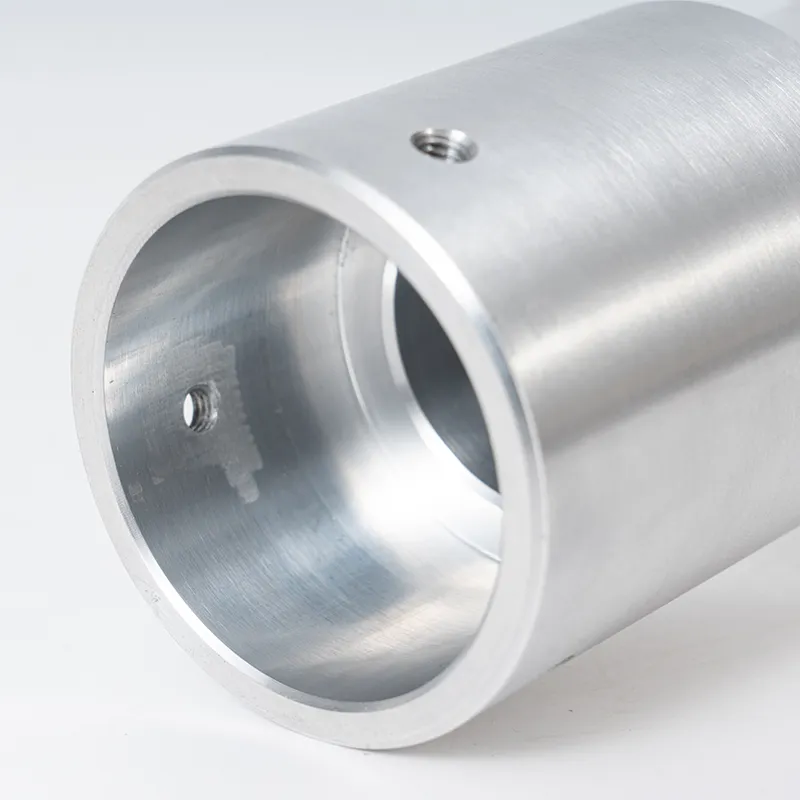

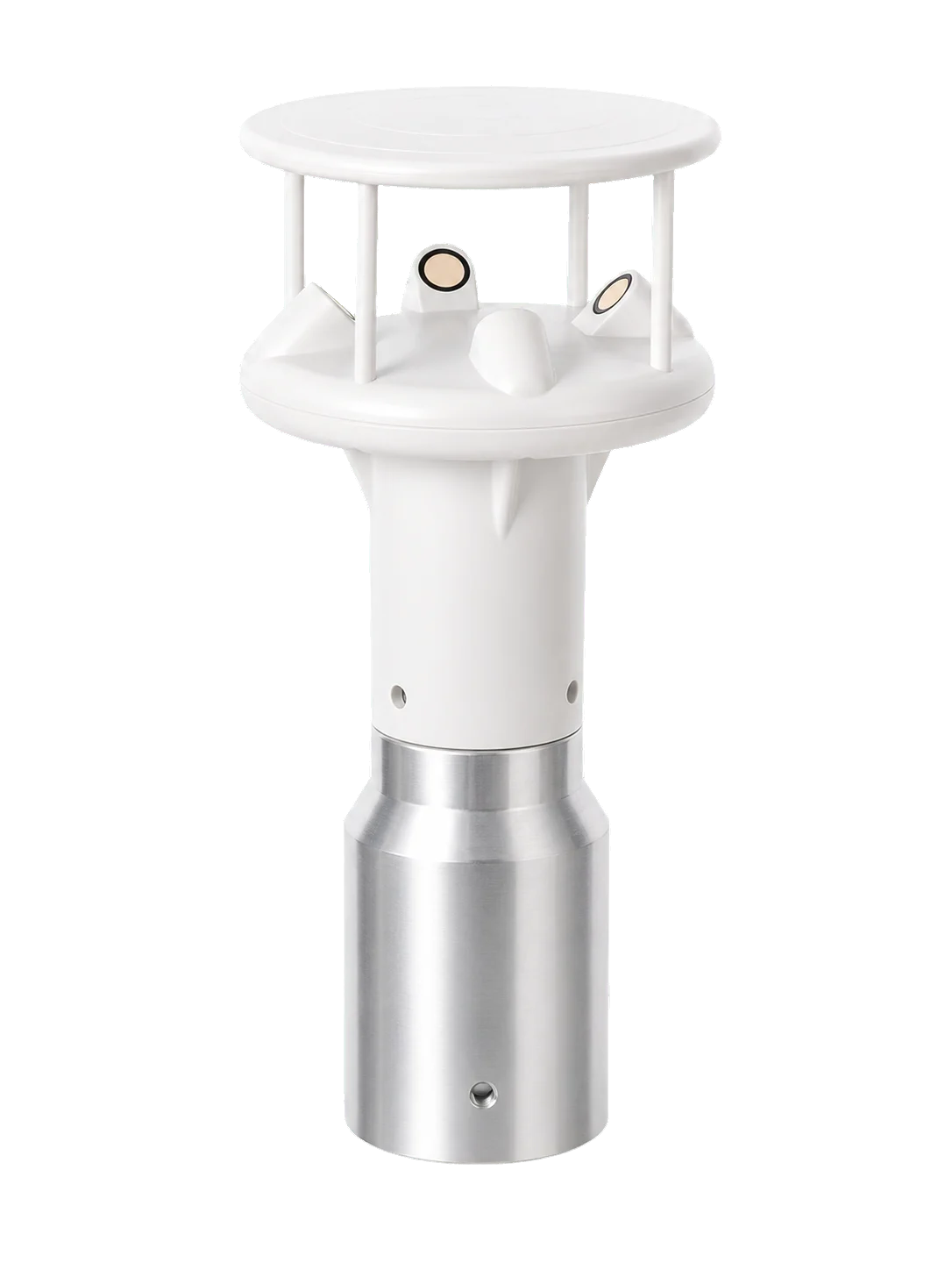

Get ChecklistStandard sleeve flange and pole-mount hardware for fast installation.
Weatherproof cabling and junction options for field wiring.
Converters between RS485, NMEA, Modbus, CAN, SDI-12, and analog outputs.
Wiring and protocol assistance for RS485, NMEA-0183, Modbus, and analog outputs.
Integration support for buoys, coastal stations, vessels, and renewable-energy sites.
Calibration, field-verification, and long-term maintenance planning.
Custom configuration for harsh-environment, marine, and polar deployments.
AeroSense-UWS is ultrasonic wind speed and direction sensor with no moving parts, fast response, ±2.5° direction accuracy, and a long service life. AeroSense-UWS measures wind speed and direction from variations in ultrasonic propagation time through the airflow. With no moving parts to wear out, the sensor offers fast response, high accuracy, and long service life — well-suited to meteorology, environmental monitoring, and wind-turbine control.
AeroSense-UWS supports Horizontal Wind Speed, Horizontal Wind Direction, RS485, NMEA-0183, Analog 4-20 mA, Modbus RTU, CAN (ASCII), SDI-12, and other configured parameters.
AeroSense-UWS is typically used for Marine environment monitoring and harbor operations, Coastal stations and offshore platforms, Wind power, photovoltaic, and renewable energy sites, Transportation meteorology and airports.
AeroSense-UWS can be configured with OceanStations, CoreLink Telemetry and related Zenocean monitoring platforms or telemetry systems.
Zenocean provides configuration, integration, deployment and maintenance guidance for AeroSense-UWS projects.
