Compact propeller wind speed and direction sensor (0-60 m/s) with NMEA-0183 output, IP66 body, and CMA / CNAS certifications.
AeroSense-Mini60 is a lightweight propeller-style wind speed and direction sensor that delivers horizontal wind data for marine, transportation, and renewable-energy meteorology. The compact 0.6 kg AAS body is rated to IP66 and configurable across RS485, NMEA, Modbus RTU, CAN, SDI-12, and analog outputs.
Standard wind speed range with ±0.3 m/s accuracy.
Lightweight AAS housing measures only 373 × 327 mm.
Precise wind direction with 1° resolution.
Includes lab-issued accuracy, temperature, and salt-spray test reports.
Aerodynamic propeller and tail wing for fast wind speed and direction response.
UV- and oxidation-resistant AAS plastic body resists yellowing and fatigue.
RS485 with NMEA-0183 by default; analog, Modbus RTU, CAN, SDI-12 optional.
Mode signal, NMEA, ASCII (Vaisala compatible), CAN (ASCII) options available.
Engineered for 50 million revolutions of continuous service.
Standard sleeve flange or pole mounting for stations, masts, and buoys.

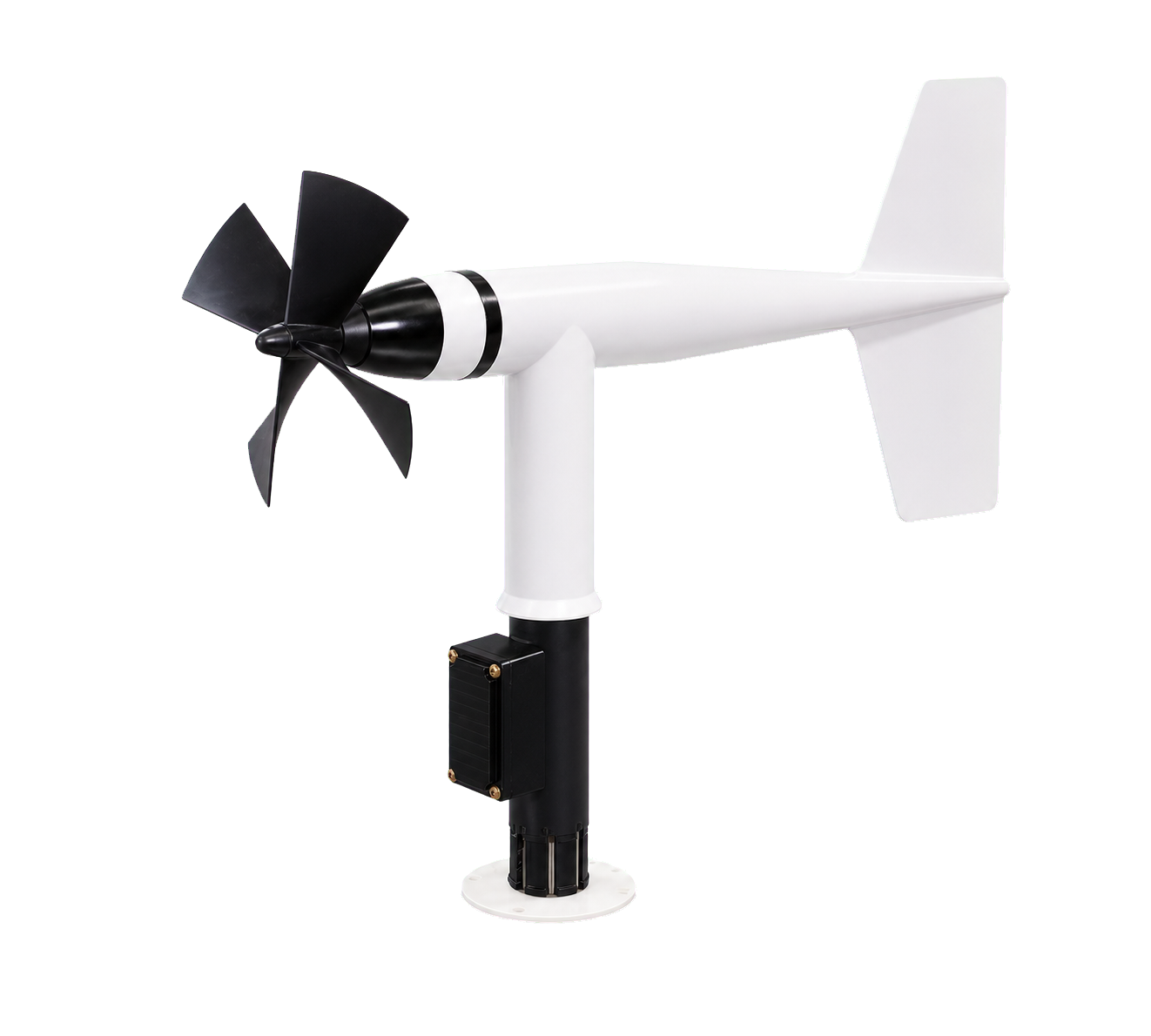

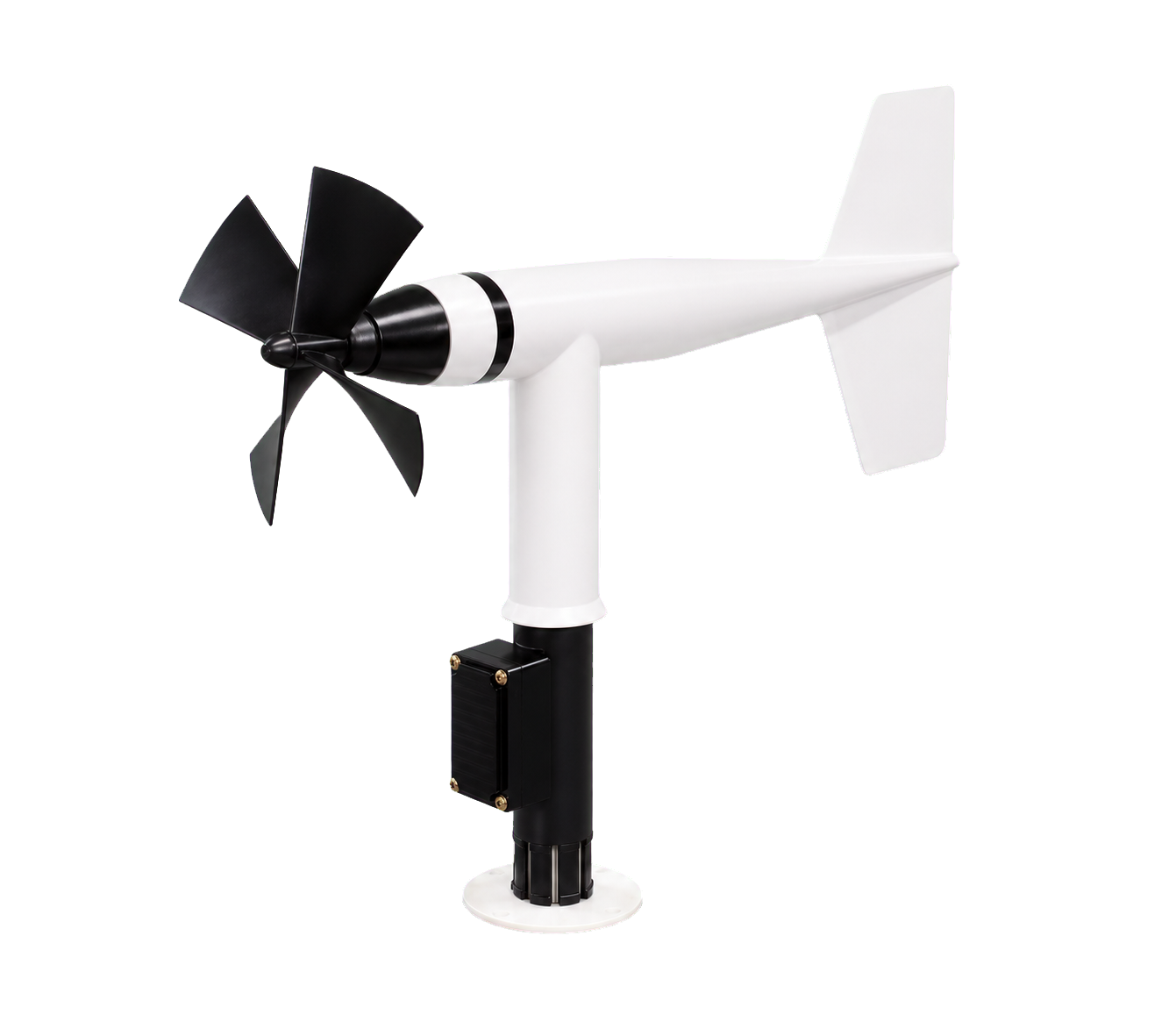

AeroSense-Mini60 is a compact propeller wind sensor used to measure horizontal wind speed and wind direction. The integrated assembly combines a tail vane, propeller, head cone, wind-speed shaft, mounting post, and junction box in a small AAS plastic body that resists UV light and oxidation for long outdoor service.
Its small form factor and low weight make it well-suited to coastal stations, vessels, wind farms, transportation meteorology, and research observatories. The sensor ships with NMEA-0183 over RS485 by default and supports a wide variety of optional protocols for direct integration into existing data acquisition systems.
Specifications, configurations, and deployment ratings for project planning.
Request PDFWiring, protocol notes, and mounting guidance for platform integrators.
Email SupportRecommended verification, calibration, and servicing workflow.
Get ChecklistStandard sleeve flange and pole-mount hardware for fast installation.
Weatherproof cabling and junction options for field wiring.
Converters between RS485, NMEA, Modbus, CAN, SDI-12, and analog outputs.
Wiring and protocol assistance for RS485, NMEA-0183, Modbus, and analog outputs.
Integration support for buoys, coastal stations, vessels, and renewable-energy sites.
Calibration, field-verification, and long-term maintenance planning.
Custom configuration for harsh-environment, marine, and polar deployments.
AeroSense-Mini60 is compact propeller wind speed and direction sensor (0-60 m/s) with NMEA-0183 output, IP66 body, and CMA / CNAS certifications. AeroSense-Mini60 is a lightweight propeller-style wind speed and direction sensor that delivers horizontal wind data for marine, transportation, and renewable-energy meteorology. The compact 0.6 kg AAS body is rated to IP66 and configurable across RS485, NMEA, Modbus RTU, CAN, SDI-12, and analog outputs.
AeroSense-Mini60 supports Horizontal Wind Speed, Horizontal Wind Direction, RS485, NMEA-0183, Analog 4-20 mA, Modbus RTU, CAN (ASCII), RS232, and other configured parameters.
AeroSense-Mini60 is typically used for Marine environment monitoring and harbor operations, Coastal stations and offshore platforms, Wind power, photovoltaic, and renewable energy sites, Transportation meteorology and airports.
AeroSense-Mini60 can be configured with OceanStations, CoreLink Telemetry and related Zenocean monitoring platforms or telemetry systems.
Zenocean provides configuration, integration, deployment and maintenance guidance for AeroSense-Mini60 projects.
