AeroSense-WindKit-L

Name: AeroSense-WindKit-L
Brand: Zenocean
Availability: InStock

Low-temperature wind monitoring set pairing the AeroSense-Mini60-L cold-climate sensor with the AeroSense-Alert alarm controller.

The AeroSense-Mini60-L + AeroSense-Alert set is the cold-climate version of the AeroSense-Mini60 + AeroSense-Alert kit. It pairs the low-temperature AeroSense-Mini60-L wind sensor with the AeroSense-Alert alarm controller, giving the same configurable alarms and logging in a kit qualified for polar, alpine, and high-latitude installations.

Request a Quote Download Datasheet Back to Product List

AeroSense-Mini60-L low-temperature wind sensor with AeroSense-Alert alarm controller

Cold-Climate Set

Low-temperature AeroSense-Mini60-L sensor paired with the AeroSense-Alert controller.

0-60 m/s Range

Standard wind speed range with ±0.3 m/s accuracy.

Configurable Alarms

Threshold-based buzzer, LED, relay, and 4-20 mA outputs.

Logging Ready

Local SD storage with optional 4G uplink to the cloud.

Cold-Climate Kit

Sensor and controller paired for low-temperature sites.

0-60 m/s

Sensor wind range with ±0.3 m/s or ±1% accuracy.

NMEA-0183

Sensor talks NMEA-0183 to the controller over RS485.

Alarm Outputs

Relay and 4-20 mA mapped to 0-60 m/s.

Local + Remote

Buzzer, LED, SD card, with optional 4G dynamic uplink.

IP66 Sensor

Outdoor IP66 sensor with sheltered IP51 controller.

Overview Specifications Parameters Resources Accessories Support

AeroSense-WindKit-L Overview

The AeroSense-Mini60-L + AeroSense-Alert set is the cold-climate version of the AeroSense-Mini60 + AeroSense-Alert wind monitoring kit. The AeroSense-Mini60-L sensor is engineered for sustained operation in low-temperature environments and feeds NMEA-0183 wind data over RS485 to the AeroSense-Alert controller.

The AeroSense-Alert alarm controller displays instantaneous, average, and maximum wind speed, and triggers configurable alarms through a buzzer, LED, relay, and 4-20 mA analog output mapped to wind speed. Data is stored on a removable SD card with an optional 4G module for remote monitoring.

AeroSense-WindKit-L Product Images

Front product view.

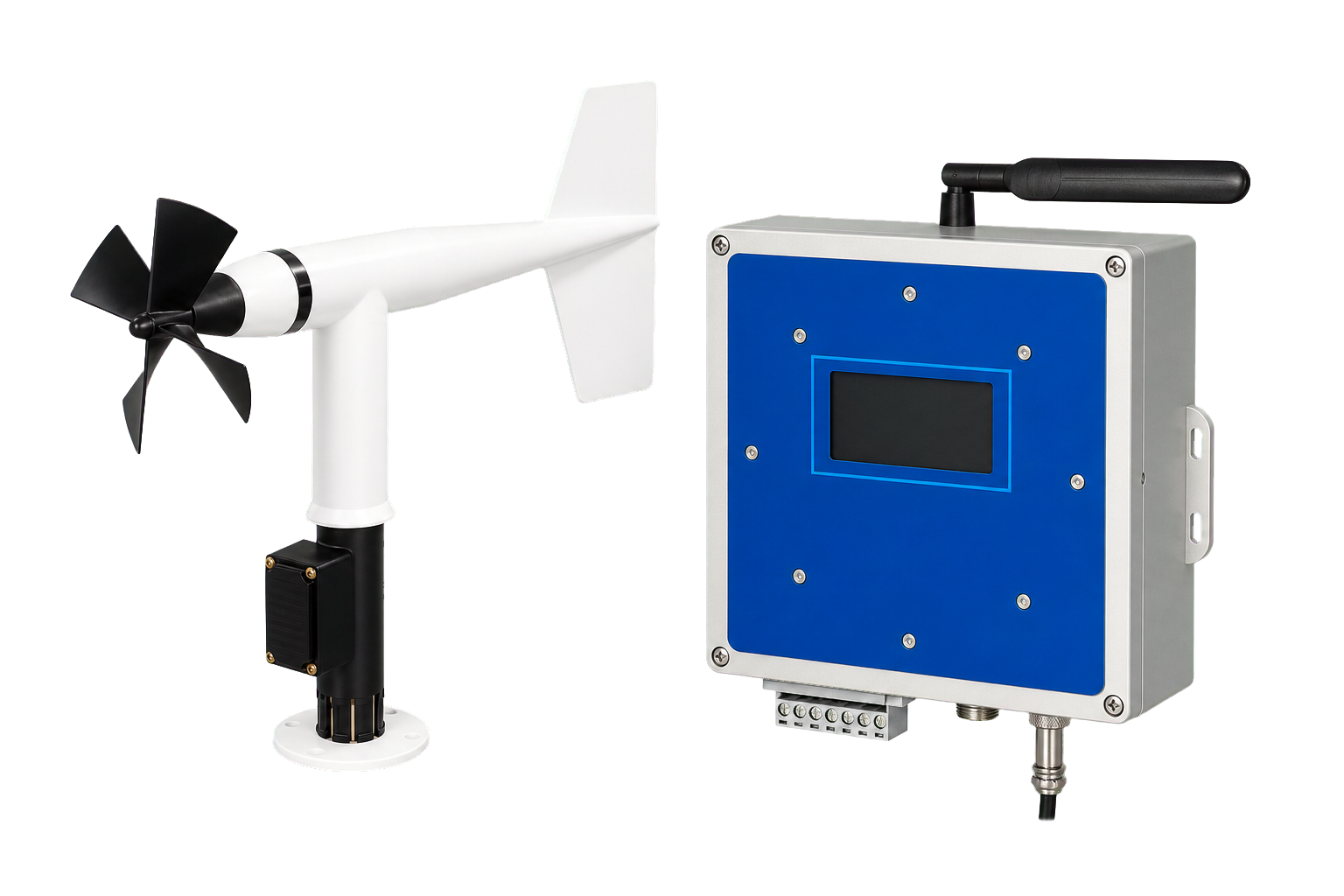

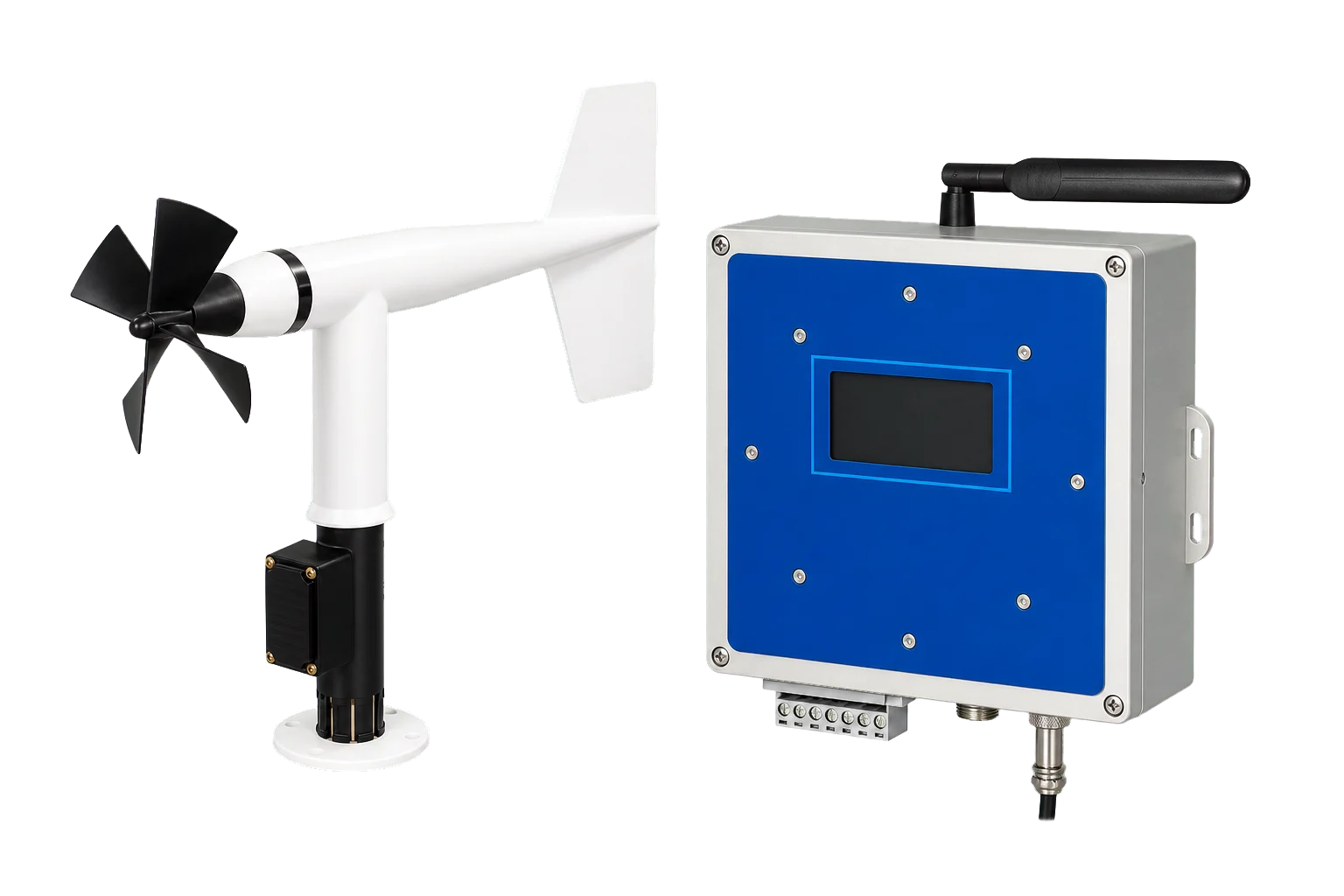

Three-quarter left view.

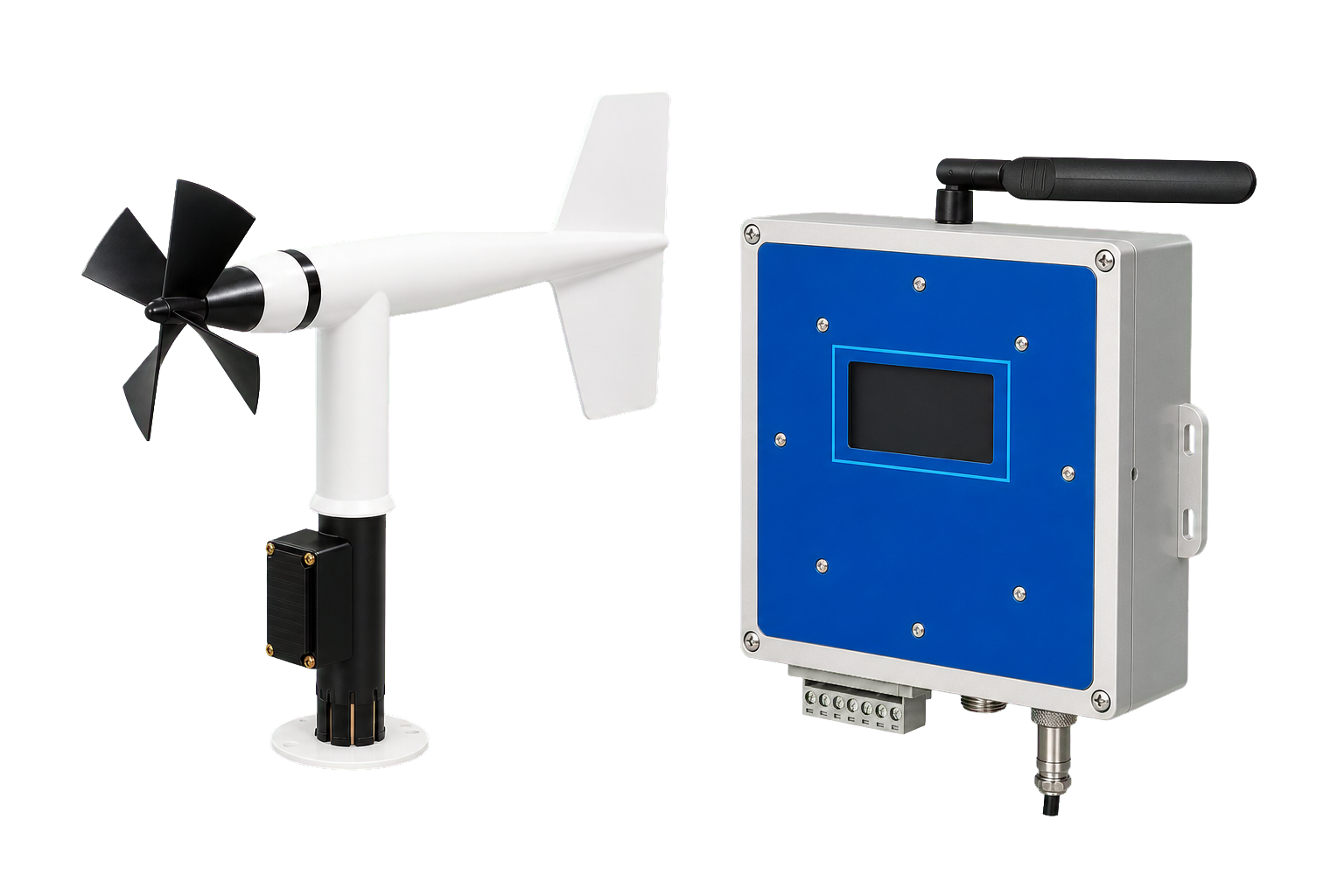

Three-quarter right view.

AeroSense-WindKit-L Key Specifications

View Full Specifications

Parameter

Value

Wind Speed Range

0 to 60 m/s

Sensor mechanical range

Wind Speed Resolution

0.1 m/s

Sensor output

Wind Speed Accuracy

±0.3 m/s or ±1% (greater)

Sensor calibration

Wind Speed Threshold

≤ 0.5 m/s

Start-up wind speed

Wind Direction Range

0 to 360°

Full azimuth coverage

Wind Direction Resolution

1°

Sensor output

Wind Direction Accuracy

±3°

Sensor calibration

Sensor Housing / Environment

AAS plastic, cold-climate optimised, -40 to +55 °C

IP66

Controller Display

Instant, average, maximum wind speed (0-100 m/s) + 0-360° direction

Local LCD readout

Controller Update Rate

1 reading per second

Display refresh

Protocol

NMEA-0183 (configurable)

Sensor-to-controller link

Controller Input

RS485, 4800 bps (configurable)

From wind sensor

Relay Output

1 channel, configurable threshold

Dry contact

Analog Output

4-20 mA mapped to 0-60 m/s

Configurable scaling

Power Supply

12 V ±10% via AC220V-to-DC12V adapter

Standard input

Logging

SD card; optional 4G dynamic uplink

Configurable interval

Controller IP Rating

IP51

Sheltered install

Controller Dimensions

160 × 160 × 80 mm (incl. ears), 0.6 kg

Bare controller

View Full Specifications

AeroSense-WindKit-L Supported Parameters

Sensor Outputs

RS485 NMEA-0183

Controller Outputs

Relay alarm 4-20 mA analog Buzzer + LED

Logging & Connectivity

SD card Optional 4G uplink

Environmental

Cold-climate sensor IP66 Controller IP51 indoor / sheltered

AeroSense-WindKit-L Resources and Downloads

Product Datasheet

Specifications, configurations, and deployment ratings for project planning.

Request PDF

Integration Guide

Wiring, protocol notes, and mounting guidance for platform integrators.

Email Support

Calibration & Maintenance

Recommended verification, calibration, and servicing workflow.

Get Checklist

AeroSense-WindKit-L Accessories

Mounting Kit

Standard sleeve flange and pole-mount hardware for fast installation.

Cable & Junction Box

Weatherproof cabling and junction options for field wiring.

Protocol Conversion

Converters between RS485, NMEA, Modbus, CAN, SDI-12, and analog outputs.

AeroSense-WindKit-L Support and Deployment Guidance

Wiring and protocol assistance for RS485, NMEA-0183, Modbus, and analog outputs.

Integration support for buoys, coastal stations, vessels, and renewable-energy sites.

Calibration, field-verification, and long-term maintenance planning.

Custom configuration for harsh-environment, marine, and polar deployments.

AeroSense-WindKit-L Frequently Asked Questions

What is AeroSense-WindKit-L?

AeroSense-WindKit-L is low-temperature wind monitoring set pairing the AeroSense-Mini60-L cold-climate sensor with the AeroSense-Alert alarm controller. The AeroSense-Mini60-L + AeroSense-Alert set is the cold-climate version of the AeroSense-Mini60 + AeroSense-Alert kit. It pairs the low-temperature AeroSense-Mini60-L wind sensor with the AeroSense-Alert alarm controller, giving the same configurable alarms and logging in a kit qualified for polar, alpine, and high-latitude installations.

What parameters does AeroSense-WindKit-L support?

AeroSense-WindKit-L supports RS485, NMEA-0183, Relay alarm, 4-20 mA analog, Buzzer + LED, SD card, Optional 4G uplink, Cold-climate sensor IP66, and other configured parameters.

Where is AeroSense-WindKit-L typically used?

AeroSense-WindKit-L is typically used for Polar and high-latitude research stations, Alpine and cold-climate construction sites, Cold-region airports and wind farms, Northern ports and offshore platforms.

What systems work with AeroSense-WindKit-L?

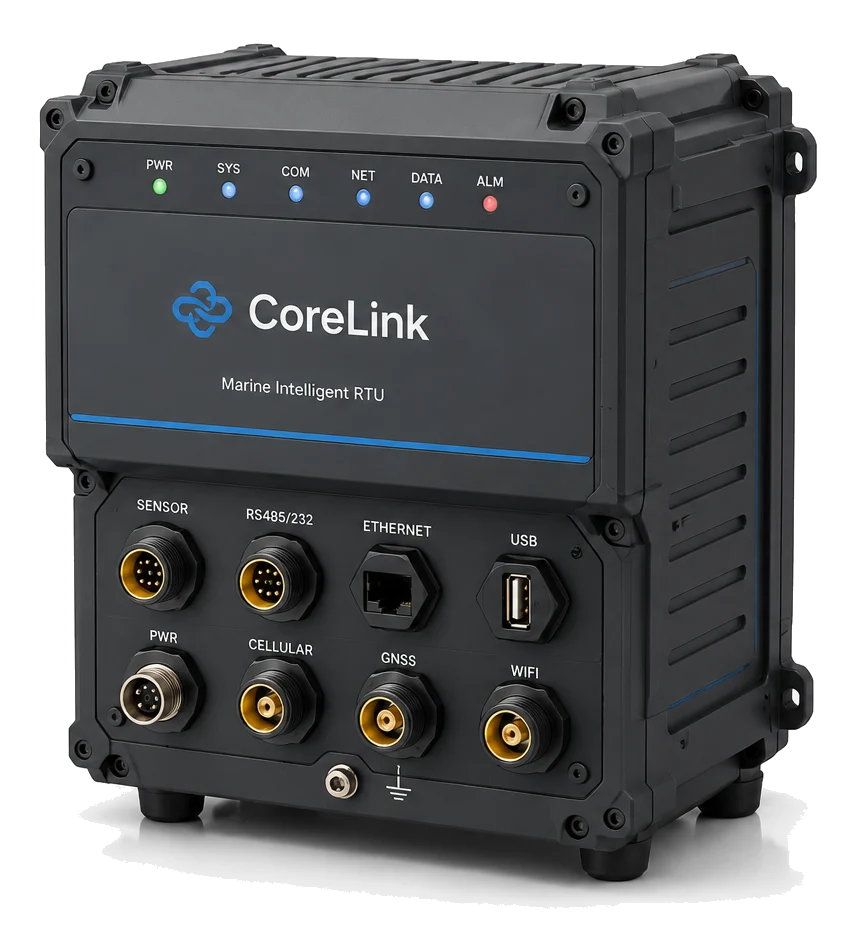

AeroSense-WindKit-L can be configured with OceanStations, CoreLink Telemetry and related Zenocean monitoring platforms or telemetry systems.

What support is available for AeroSense-WindKit-L?

Zenocean provides configuration, integration, deployment and maintenance guidance for AeroSense-WindKit-L projects.
