AeroSense-WindKit
Integrated wind monitoring set pairing the AeroSense-Mini60 propeller wind sensor with the AeroSense-Alert alarm controller for standard sites.

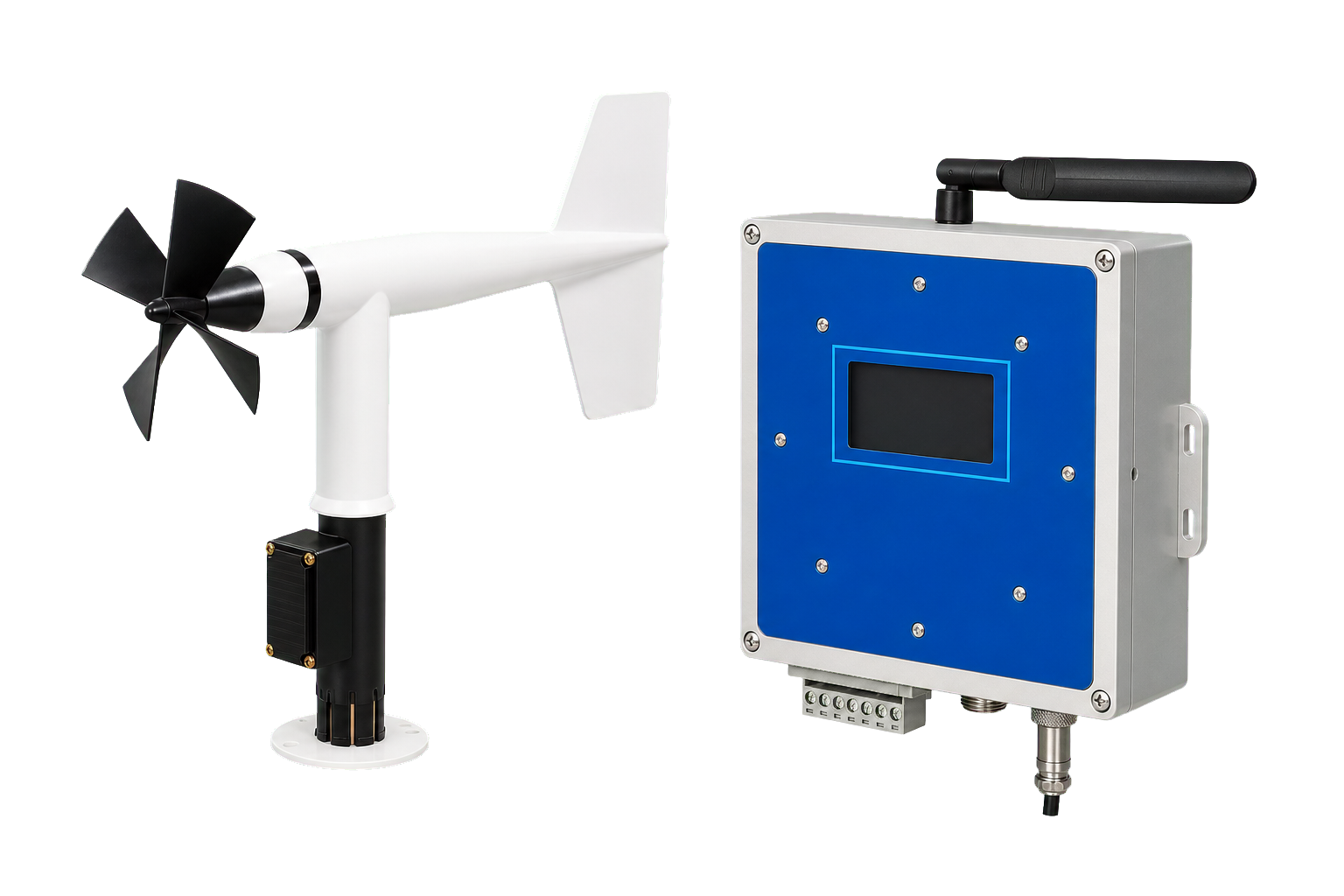

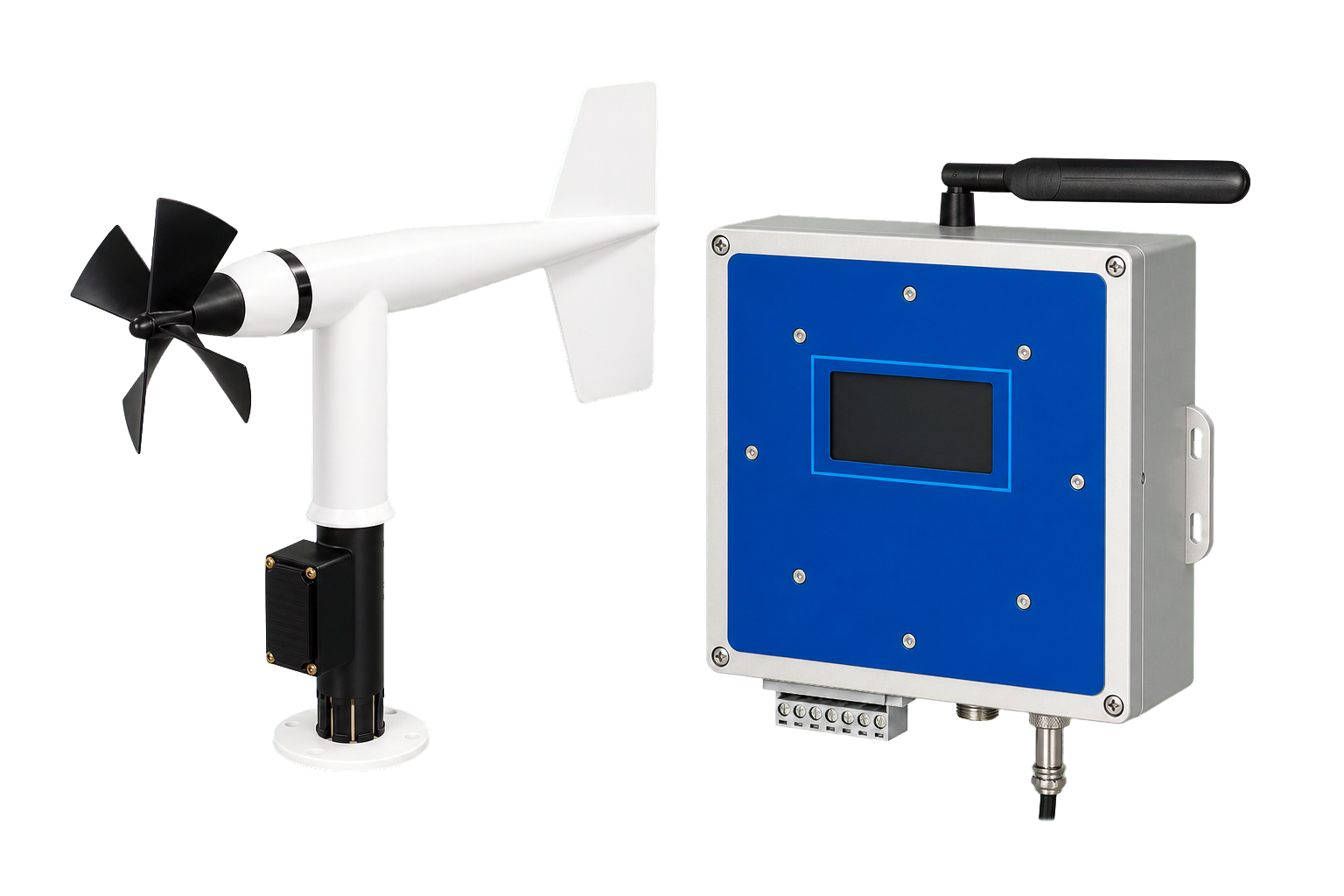

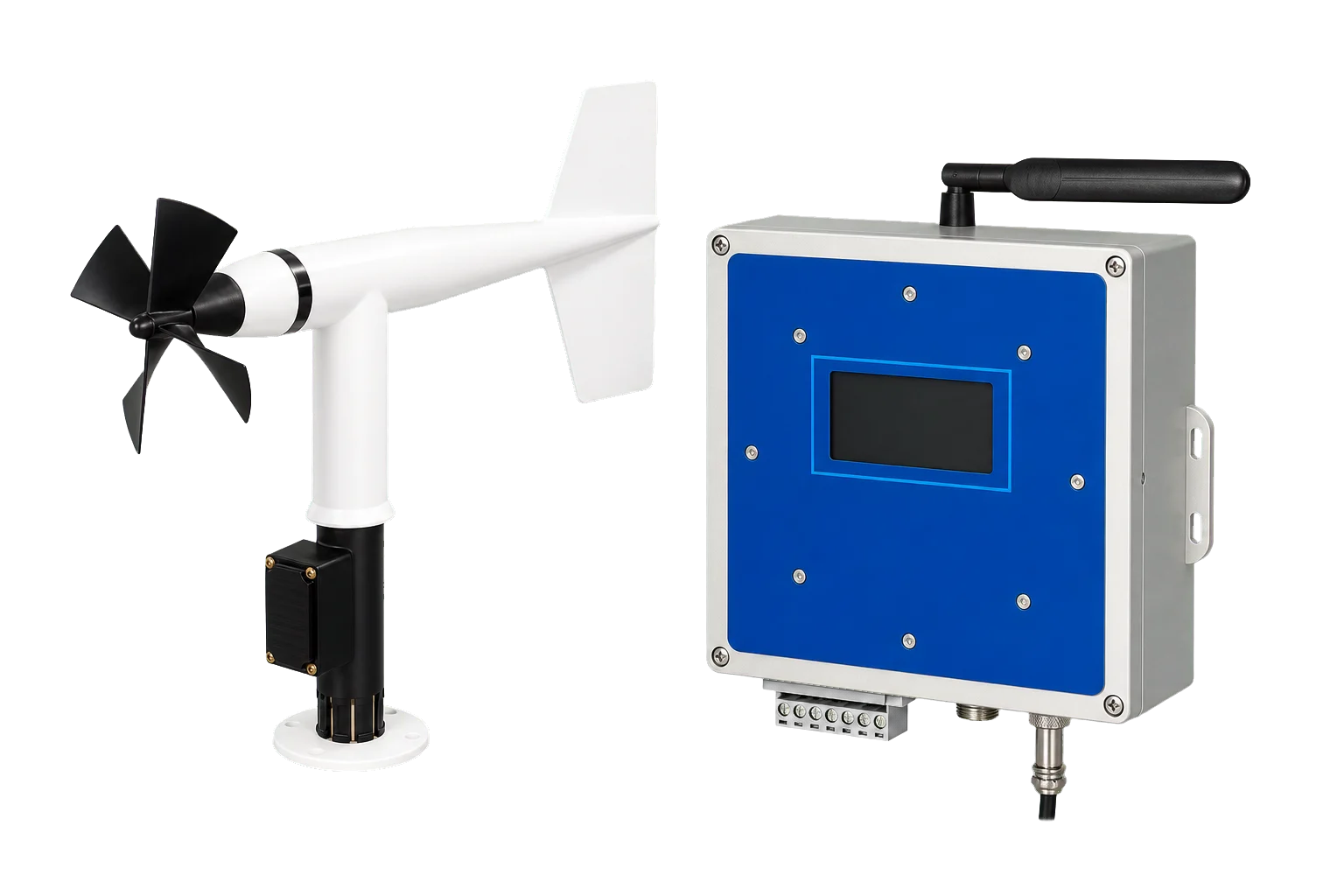

The AeroSense-Mini60 + AeroSense-Alert set bundles a 0-60 m/s compact propeller wind sensor with a wind alarm controller. The combination delivers wind speed and direction readings, configurable alarm thresholds, relay and 4-20 mA outputs, SD logging, and optional 4G uplink in a turn-key kit.
Sensor + Controller
AeroSense-Mini60 wind sensor paired with AeroSense-Alert alarm controller.
0-60 m/s Range
Standard wind speed range with ±0.3 m/s accuracy.
Configurable Alarms
Threshold-based buzzer, LED, relay, and 4-20 mA outputs.
Logging Ready
Local SD storage with optional 4G uplink to the cloud.
Turn-Key Set
Sensor, controller, and wiring planned together for fast install.
Standard Wind Range
0-60 m/s sensor matched to the alarm controller display.
NMEA-0183
Sensor talks NMEA-0183 to the controller over RS485.
Alarm Outputs
Relay contact and 4-20 mA mapped to 0-60 m/s wind speed.
Local + Remote
Buzzer, LED, SD card, with optional 4G dynamic uplink.
IP66 Sensor
Outdoor IP66 sensor with sheltered IP51 controller.
Overview
The AeroSense-Mini60 + AeroSense-Alert set is a turn-key wind monitoring kit. The AeroSense-Mini60 compact propeller sensor measures horizontal wind speed and direction and feeds NMEA-0183 data over RS485 to the AeroSense-Alert alarm controller, which displays instantaneous, average, and maximum wind speed and triggers configurable alarms.
Alarms are driven through a buzzer, LED indicator, relay contact, and 4-20 mA analog output mapped to wind speed. The controller logs to a removable SD card and supports an optional 4G module for remote monitoring — useful for cranes, bridges, ports, and renewable-energy sites.
Product Images
Key Specifications
View Full SpecificationsSupported Parameters
Sensor Outputs
Controller Outputs
Logging & Connectivity
Environmental
Resources
Product Datasheet
Specifications, configurations, and deployment ratings for project planning.
Request PDFIntegration Guide
Wiring, protocol notes, and mounting guidance for platform integrators.
Email SupportCalibration & Maintenance
Recommended verification, calibration, and servicing workflow.
Get ChecklistAccessories
Mounting Kit
Standard sleeve flange and pole-mount hardware for fast installation.
Cable & Junction Box
Weatherproof cabling and junction options for field wiring.
Protocol Conversion
Converters between RS485, NMEA, Modbus, CAN, SDI-12, and analog outputs.
Support
Wiring and protocol assistance for RS485, NMEA-0183, Modbus, and analog outputs.
Integration support for buoys, coastal stations, vessels, and renewable-energy sites.
Calibration, field-verification, and long-term maintenance planning.
Custom configuration for harsh-environment, marine, and polar deployments.
