AeroSense-WS100
Wide-range propeller wind sensor (0-100 m/s) engineered for typhoon, severe weather, and extreme-condition observation.
AeroSense-WS100 is the super-range AeroSense-WS model, covering wind speeds from 0 to 100 m/s. It uses a PC housing rated to +70 °C with a stainless-steel shaft, and is tailored to typhoon monitoring, severe weather research, and high-exposure offshore sites.
0-100 m/s Range
Built to keep measuring through typhoon-level wind events.
PC Housing
PC plastic withstands sustained -55 to +70 °C exposure.
±3° Direction Accuracy
Tight direction accuracy for severe-weather research.
Multi-Cert Tested
Validated for high-/low-temperature, salt spray, vibration, and EM tests.
Propeller Design
Aerodynamic propeller and tail wing for fast wind speed and direction response.
Marine Grade
UV- and oxidation-resistant AAS plastic body resists yellowing and fatigue.
Standard Protocols
RS485 with NMEA-0183 by default; analog, Modbus RTU, CAN, SDI-12 optional.
Wide Configurability
Mode signal, NMEA, ASCII (Vaisala compatible), CAN (ASCII) options available.
Long Service Life
Engineered for 50 million revolutions of continuous service.
Easy Mounting
Standard sleeve flange or pole mounting for stations, masts, and buoys.
Overview
AeroSense-WS100 is the wide-range model of the AeroSense-WS propeller wind sensor series. Built for typhoon monitoring, severe-weather research, and offshore exposed sites, it measures horizontal wind speeds from 0 to 100 m/s with the same mechanical assembly as the AeroSense-WS60 and AeroSense-WS70 but upgraded materials.
The housing is moulded from PC plastic and the wind-speed shaft is stainless steel, giving the sensor a -55 to +70 °C operating window. The AeroSense-WS family is widely used across marine, transportation, agricultural and forestry, polar, photovoltaic, and wind-power meteorology.

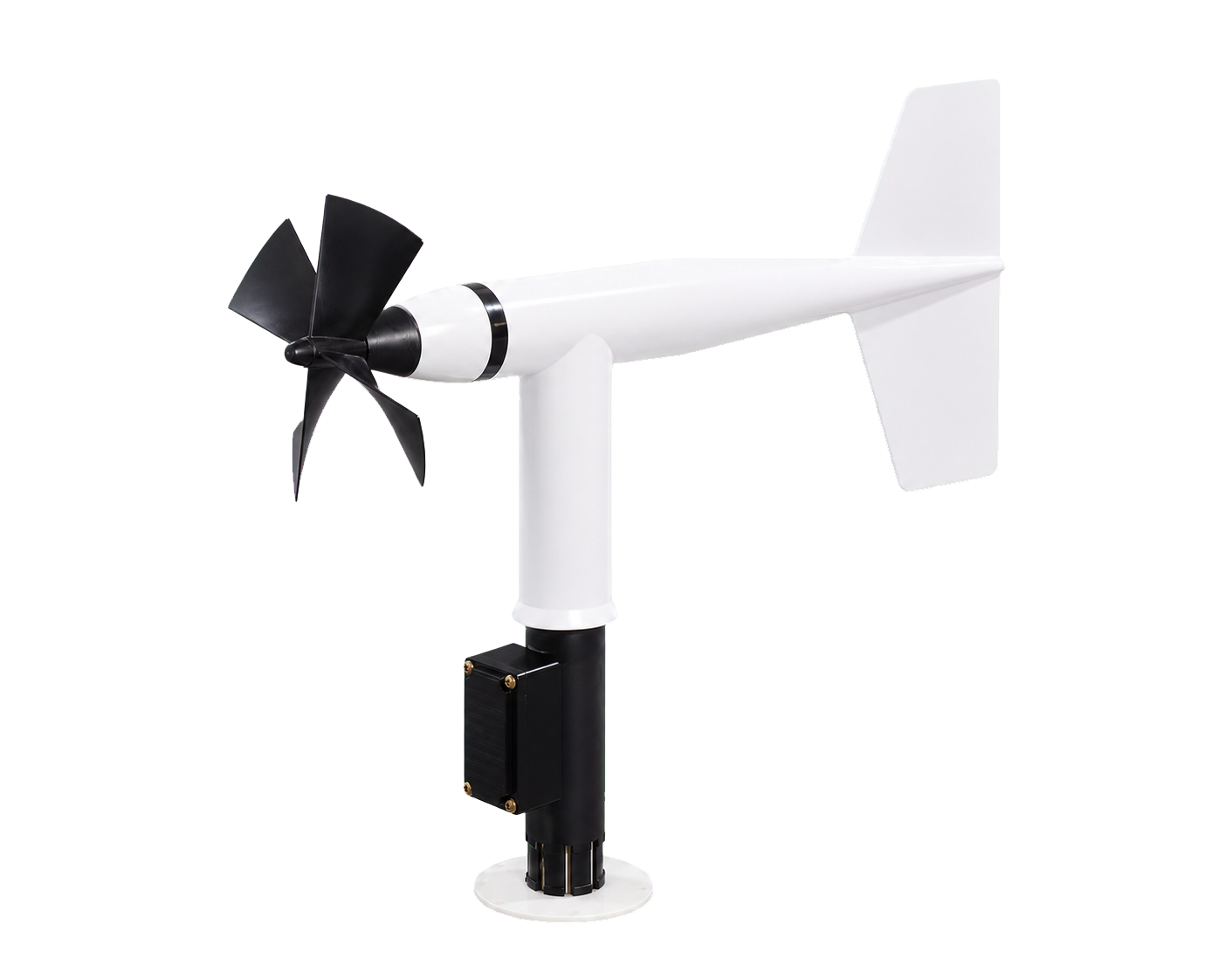

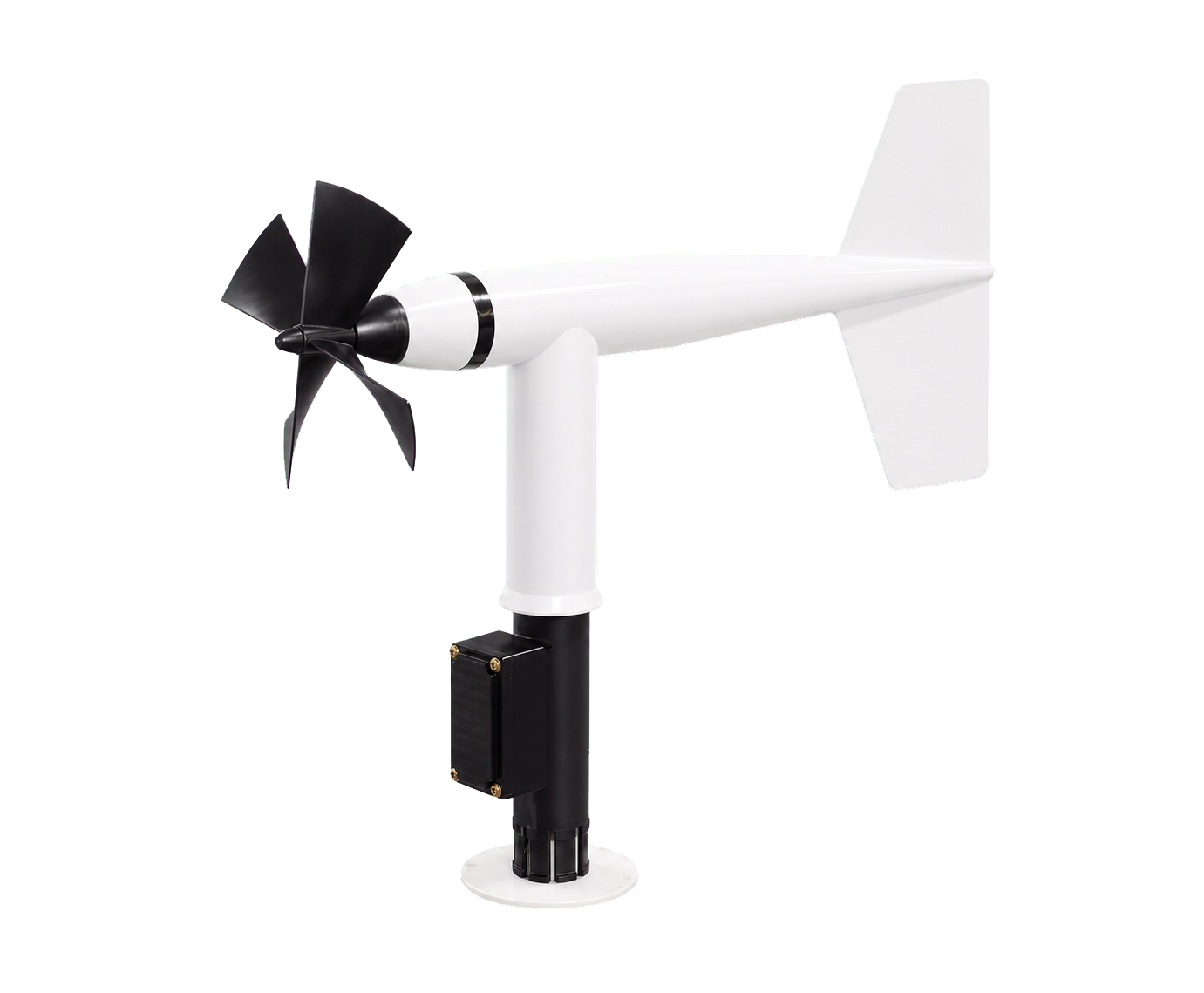

Product Images
Key Specifications
View Full SpecificationsSupported Parameters
Measured Parameters
Output Options
Power Options
Environmental
Resources
Product Datasheet
Specifications, configurations, and deployment ratings for project planning.
Request PDFIntegration Guide
Wiring, protocol notes, and mounting guidance for platform integrators.
Email SupportCalibration & Maintenance
Recommended verification, calibration, and servicing workflow.
Get ChecklistAccessories
Mounting Kit
Standard sleeve flange and pole-mount hardware for fast installation.
Cable & Junction Box
Weatherproof cabling and junction options for field wiring.
Protocol Conversion
Converters between RS485, NMEA, Modbus, CAN, SDI-12, and analog outputs.
Support
Wiring and protocol assistance for RS485, NMEA-0183, Modbus, and analog outputs.
Integration support for buoys, coastal stations, vessels, and renewable-energy sites.
Calibration, field-verification, and long-term maintenance planning.
Custom configuration for harsh-environment, marine, and polar deployments.
